Review Article in Progress in Additive Manufacturing

Our review article “Advances in modeling transport phenomena in material‑extrusion additive manufacturing” has now been published in Progress in Additive Manufacturing. This article was a collaboration between the University of Lincoln and Virginia Tech.

Advances in modeling transport phenomena in material‑extrusion additive manufacturing: Coupling momentum, heat, and mass transfer

Arit Das, Claire McIlroy and Michael J. Bortner

Abstract Material-extrusion (MatEx) additive manufacturing involves layer-by-layer assembly of extruded material onto a printer bed and has found applications in rapid prototyping. Both material and machining limitations lead to poor mechanical properties of printed parts. Such problems may be addressed via an improved understanding of the complex transport processes and multiphysics associated with the MatEx technique. Thereby, this review paper describes the current (last 5 years) state of the art modeling approaches based on momentum, heat and mass transfer that are employed in an effort to achieve this under- standing. We describe how specific details regarding polymer chain orientation, viscoelastic behavior, and crystallization are often neglected and demonstrate that there is a key need to couple the transport phenomena. Such a combined modeling approach can expand MatEx applicability to broader application space, thus we present prospective avenues to provide more comprehensive modeling and therefore new insights into enhancing MatEx performance.

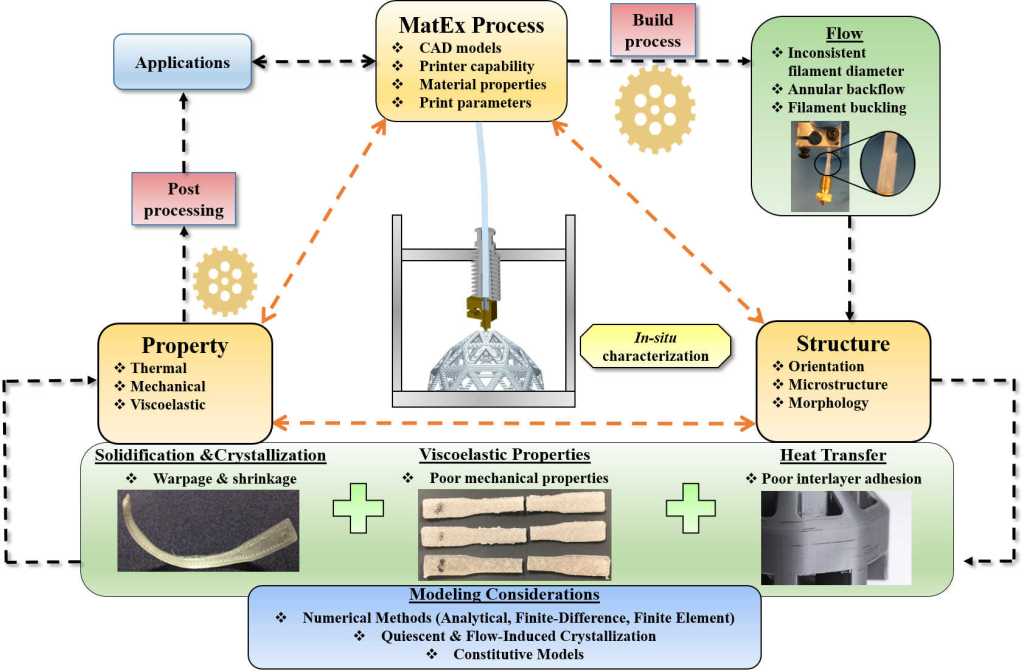

Schematic of MatEx additive manufacturing
Overview of the process-structure–property relationships in material extrusion based additive manufacturing.
