Article in Physics of Fluids on Rheology, Crystallization and 3D printing conditions

Our article “Rheology, crystallization, and process conditions: The effect on interlayer adhesion in three-dimensional printing” has now been published in Physics of Fluids special issue Advanced Rheology of Complex Fluids for Next-Generation Technologies. This work is in collaboration with Virginia Tech.

Rheology, crystallization, and process conditions: The effect on interlayer properties in three-dimensional printing

Arit Das, Jocelyn A. Riet, Michael J. Bortner, and Claire McIlroy

Abstract: Semicrystalline polymers are an attractive feedstock choice for material extrusion (MatEx)-based three-dimensional printing processes. However, the printed parts often exhibit poor mechanical properties due to weak interlayer strength thereby limiting the widespread adoption of MatEx. Improved interlayer strength in the printed parts can be achieved through a combination of process parameter selection and material modification but a physics-based understanding of the underlying mechanism is not well understood. Further, the localized thermal history experienced by the prints can significantly influence the strength of the interlayer welds.

In this work, a combined experimental and modeling approach has been employed to highlight the relative impact of rheology, non-isothermal crystallization kinetics, and print geometry on the interlayer strength of printed parts of two semicrystalline polymers, namely, polylactic acid (PLA) and polypropylene (PP). Specifically, the print properties have been characterized as a function of print temperature and print speed. In case of single road width wall (SRWW) PLA prints the total crystalline fraction increases due to the broadening of the crystallization window at higher print temperatures and lower print speeds.

The results are substantiated by the constitutive modeling results that account for the effects of quiescent crystallization. However, SRWW PP prints display a reduction in the interlayer properties with temperature likely due to significant flow-induced crystallization effects, as suggested by the model. Interestingly, in case of multilayer PP prints, the repeated heating/cooling cycles encountered during printing counteracts the flow-induced effects leading to an increase in mechanical properties with print temperature consistent with SRWW PLA prints.

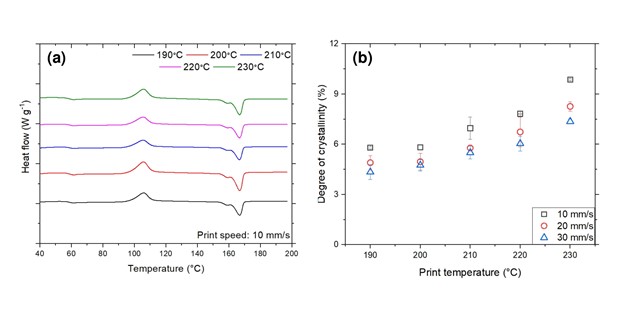

(a) Representative DSC thermogram (exotherms up) of single road width wall PLA printed at different temperatures and 10 mm/s print speed. The scan is from the first heating cycle of a non-isothermal DSC experiment. (b) Degree of crystallinity of PLA prints as a function of different print temperatures and print speeds.

Categories: Updates

Leave a Comment

Fill in your details below or click an icon to log in:

WordPress.com Logo

You are commenting using your WordPress.com account. Log Out /  Change )

Facebook photo

You are commenting using your Facebook account. Log Out /  Change )

Connecting to %s

This site uses Akismet to reduce spam. Learn how your comment data is processed.
